Industrial Induction Surface Hardening Machine For Metal Quenching

Brand Name : GY

Certification : CE, FCC, SGS, ROHS

Place of Origin : CHINA

MOQ : 1 set

Price : negotiation

Payment Terms : T/T

Supply Ability : 500 sets per month

Delivery Time : 5-8 workdays after payment

Packaging Details : wooden boxes

Product Name : Induction Hardening Machine

Net Weight : 900kgs

Warranty : 12months

Technology support : All life

After-sales Service Provided : Engineer On-site Service, Online Support, Video Technical Support

Work time : 24 hours a day

Features : Energy saving, safer, more efficient, environmentally,

Application : Induction Quenching, Induction Hardening

Contact Now

Controllability And Repeatability Induction Hardening Machine For Metal Workpiece

Induction Hardening Machine

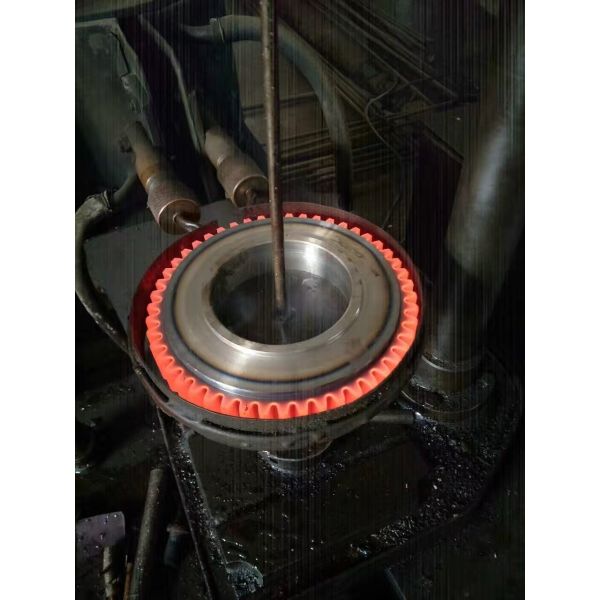

Induction hardening is the most effective heat treatment method to improve the surface wear resistance and hardness of metal parts. It rapidly heats carbon steel parts to a set temperature by induction heating and then cools quickly. Induction hardened metal workpieces increase in hardness.

The most significant benefit of induction hardening is its controllability and repeatability. You can set the position and temperature of the heated metal workpiece. You can also precisely control the depth and time of hardening by adjusting the power, frequency, and induction coil of the hardening equipment. This ensures consistent results for metal workpieces.

Industrial Induction Surface Hardening Machine For Metal Quenching

Quick Detail:

Name	Spray cooling Quenching Machine Induction Hardening Machine For Tempering Gear	Application	Quenching
Net weight	900kg	Cooling method	immersion, hydrojet
Dimension	11009002000	Certificate	CE,SGS

Technical Parameters

The maximum diameter of quenching material: 300mm
The maximum weight of the work piece: 50kg
Work piece operating speed:1-30mm/s
Work piece descent speed: 120mm/s
Speed of main shaft:1-200r/min
Motor power of main drive: 1.5kw
Cooling method: immersion, hydrojet
Machine Weight: 900kg
Dimension: 1100*900*2000
Transmission mode: mechanical rotation

Industrial Induction Surface Hardening Machine For Metal Quenching

Advantages of induction hardening:

Induction hardening offers a range of advantages over other hardening approaches. It is possible to harden a specific workpiece area with the exact penetration depth using induction hardening. Many applications require hardening the workpiece only on a particular section, which can be achieved by controlling the operational variables, such as the amount of current, heating time, and current frequency. In addition, a customized coil can be designed for the process based on specific use.

Following are the other key advantages of the induction hardening process.

Induction hardening can heat and cool a metal component much faster than other methods, such as flame or furnace hardening.
It customizes the hardness of the steel workpiece to the desired level.
Induction hardening is the best approach to get uniform hardening throughout the material structure.
It requires low manual labor and can be completely automated, depending on the requirements.
It is generally more energy efficient than other methods, as it heats and cools the component more quickly and requires less energy to maintain the high temperatures.
Induction hardening allows for greater control of the heating and cooling rates, which can result in a more consistent and precise hardening of the component.
The induction hardening process minimizes the risk of defective parts and directly contributes to the hardening cost. In addition, the automation in induction hardening reduces manual labor and helps to reduce the overall cost.

Industrial Induction Surface Hardening Machine For Metal Quenching

Our services

Pre-sale service.

Inquiry and consulting service
recommend the most suitable for our customers according to their requirements
Sample testing support
working videos available
View our factory

In-sale service.

Strictly manufacture the machine, according to relevant technical standards.
Take run test, according to relevant equipment test run regulations.
Strictly check up the machine, before delivery
Delivery on time.

After-sale service.

Warranty time: 1year Warranty.
Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
